Experience the power of real-time messaging, video calls, and seamless communication firsthand. Watch the demo video below and discover how ChatStream can transform your platform into a hub of instant connection and engagement.

Features

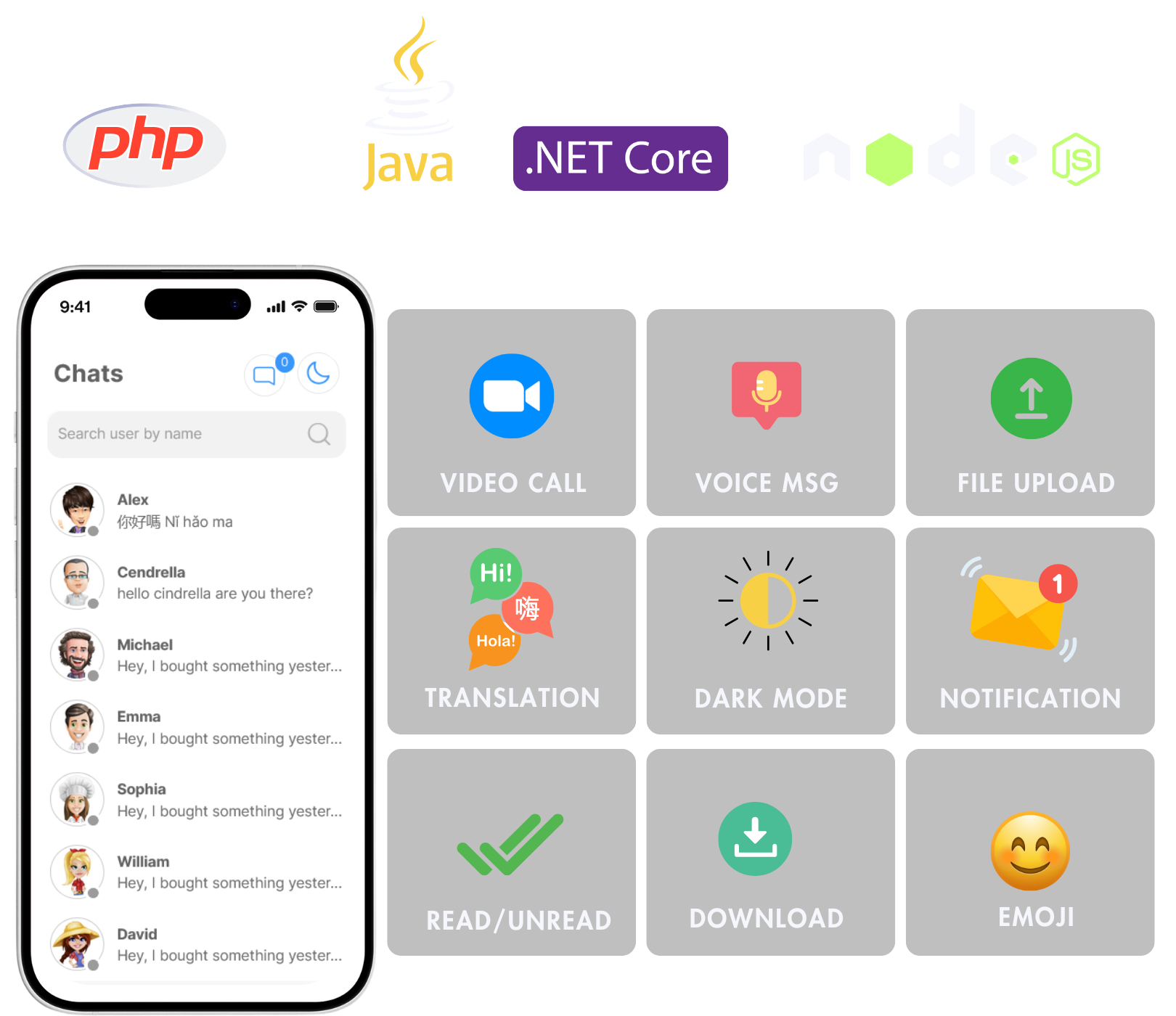

The Real-Time Chat System offers a comprehensive suite of features designed to enhance communication, improve user engagement, and ensure an intuitive experience. Whether you're a small team or a large organization, this system is customizable and scalable to meet your needs.

• Real-Time Messaging
  Engage in instant, uninterrupted conversations with your peers and clients. Enjoy a seamless, modern chat experience with real-time updates.
• Text Chatting
  Enjoy text-based communication with fast message delivery, notifications, and emojis to make chats more expressive.
• File Attachments
  Send and receive files, images, documents, and more directly within the chat. This ensures that important content is shared securely and instantly.
• Voice Messages
  Record and send voice messages with a simple click. Perfect for quick communication when typing is inconvenient.
• Video Chat
  Engage in face-to-face conversations with built-in video chat support. Whether for meetings or casual chats, the video experience is smooth and reliable.
• User Search Engine
  Quickly find other users within the system using the powerful search functionality. You can search by username, email, or other criteria, making it easy to connect with the right people.
• Day and Night Modes:
  Switch between day and night modes for a more comfortable viewing experience depending on the time of day. The system automatically adjusts for low light environments.
• Video Chat Controls:
  Take full control of your video chat experience with features designed for flexibility and convenience.Mute participants, disable the camera for privacy, adjust resolution for better performance, and add creative filters to personalize your video chats.
• Cross-Platform Support: Whether you're using PHP, Node.js, Java, or .NET, the system is built to support all these platforms. This allows for flexible integration with your existing backend technologies.

Database Structure

• MS SQL Server
• MY SQL
• PostgreSQL

CREATE TABLE Users (
    UserId INT PRIMARY KEY IDENTITY(1,1),
    UserName NVARCHAR(100),
    Email NVARCHAR(100),
    Icon NVARCHAR(255),
    Status NVARCHAR(255),
    CreatedDate DATETIME DEFAULT GETDATE(),
    IsActive BIT DEFAULT 1,
    LastLoginDate DATETIME
);


CREATE TABLE Chats (
    ChatId INT PRIMARY KEY IDENTITY(1,1),
    SenderId INT,
    ReceiverId INT,
    Message NVARCHAR(MAX),
    Attachment NVARCHAR(1000),
    Audio NVARCHAR(1000),
    VideoChatLink NVARCHAR(1000),
    SentAt DATETIME DEFAULT GETDATE(),
    IsRead BIT DEFAULT 0,
    FOREIGN KEY (SenderId) REFERENCES Users(UserId),
    FOREIGN KEY (ReceiverId) REFERENCES Users(UserId)
);


CREATE TABLE Users (
    UserId INT PRIMARY KEY AUTO_INCREMENT,
    UserName VARCHAR(100),
    Email VARCHAR(100),
    Icon VARCHAR(255),
    Status VARCHAR(255),
    CreatedDate DATETIME DEFAULT CURRENT_TIMESTAMP,
    IsActive TINYINT(1) DEFAULT 1,
    LastLoginDate DATETIME
);


CREATE TABLE Chats (
    ChatId INT PRIMARY KEY AUTO_INCREMENT,
    SenderId INT,
    ReceiverId INT,
    Message TEXT,
    Attachment VARCHAR(1000),
    Audio VARCHAR(1000),
    VideoChatLink VARCHAR(1000),
    SentAt DATETIME DEFAULT CURRENT_TIMESTAMP,
    IsRead TINYINT(1) DEFAULT 0,
    FOREIGN KEY (SenderId) REFERENCES Users(UserId),
    FOREIGN KEY (ReceiverId) REFERENCES Users(UserId)
);


CREATE TABLE Users (
    UserId SERIAL PRIMARY KEY,
    UserName VARCHAR(100),
    Email VARCHAR(100),
    Icon VARCHAR(255),
    Status VARCHAR(255),
    CreatedDate TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
    IsActive BOOLEAN DEFAULT TRUE,
    LastLoginDate TIMESTAMP
);


CREATE TABLE Chats (
    ChatId SERIAL PRIMARY KEY,
    SenderId INT,
    ReceiverId INT,
    Message TEXT,
    Attachment VARCHAR(1000),
    Audio VARCHAR(1000),
    VideoChatLink VARCHAR(1000),
    SentAt TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
    IsRead BOOLEAN DEFAULT FALSE,
    FOREIGN KEY (SenderId) REFERENCES Users(UserId),
    FOREIGN KEY (ReceiverId) REFERENCES Users(UserId)
);


Integration Steps

To integrate the chat system with your application:

• Deploy the backend code for your preferred technology (.NET, PHP, Node.js, or Java).
• Update the database connection string in the respective backend code.
• Configure the AJAX endpoints in the front-end JavaScript to point to your server.
• Test the application with sample data to ensure functionality.

To generate a Google Cloud API key for Translation:

• Sign in to Google Cloud Console: Go to Google Cloud Console.
• Create a Project: Click on "Select a Project" and then "New Project" to create one.
• Enable the Translation API: Go to the Google Cloud Translation API page and click "Enable."
• Create Credentials: Navigate to the "Credentials" page and click "Create Credentials," then choose "API Key."
• Restrict the API Key (optional): You can restrict usage for security purposes.
• For more details, visit Google's API documentation. translation google api steps

Server-Side Code

• .NET Core
• PHP
• Node.js
• Java

[ApiController]
[Route("api/[controller]")]
public class ChatController : ControllerBase
{
    private readonly ChatDbContext _context;

    public ChatController(ChatDbContext context)
    {
        _context = context;
    }

    [HttpGet("users")]
    public async Task GetUsers()
    {
        var users = await _context.Users.Where(u => u.IsActive).ToListAsync();
        return Ok(users);
    }

    [HttpGet("chat-users/{userId}")]
    public async Task GetChatUsers(int userId)
    {
        var chatUsers = await _context.Chats
            .Where(c => c.SenderId == userId || c.ReceiverId == userId)
            .Select(c => new
            {
                UserId = c.SenderId == userId ? c.ReceiverId : c.SenderId,
                UserName = c.SenderId == userId
                    ? _context.Users.FirstOrDefault(u => u.UserId == c.ReceiverId).UserName
                    : _context.Users.FirstOrDefault(u => u.UserId == c.SenderId).UserName
            })
            .Distinct()
            .ToListAsync();
        return Ok(chatUsers);
    }

    #region Login
    [HttpPost]
    public async Task Login(string username, string password)
    {
        var user = await _context.Users
            .FirstOrDefaultAsync(u => u.UserName == username);

        if (user == null || user.Password != password)
        {
            return Json(new { success = false, message = "Invalid username or password!" });
        }

        var claims = new List
        {
            new Claim(ClaimTypes.NameIdentifier, user.UserId.ToString()),
            new Claim(ClaimTypes.Name, user.UserName),
            new Claim(ClaimTypes.Email, user.Email)
        };

        var claimsIdentity = new ClaimsIdentity(claims, CookieAuthenticationDefaults.AuthenticationScheme);

        var authProperties = new AuthenticationProperties
        {
            IsPersistent = true,
            ExpiresUtc = DateTime.UtcNow.AddDays(30)
        };

        await HttpContext.SignInAsync(CookieAuthenticationDefaults.AuthenticationScheme,
                                      new ClaimsPrincipal(claimsIdentity),
                                      authProperties);

        return Json(new { success = true });
    }
    #endregion

    #region Users
    [HttpGet]
    public IActionResult GetAllUsers()
    {
        var users = _context.Users
            .Where(u => u.IsActive)
            .Select(u => new
            {
                userid = u.UserId,
                username = u.UserName,
                email = u.Email,
                icon = u.Icon
            })
            .ToList();

        return Json(users);
    }

    [HttpGet]
    public IActionResult GetUserByID(int userid)
    {
        var users = _context.Users
            .Where(u => u.IsActive && u.UserId == userid)
            .Select(u => new
            {
                userid = u.UserId,
                username = u.UserName,
                email = u.Email,
                icon = u.Icon
            })
            .FirstOrDefault();

        return Json(users);
    }

    [HttpGet]
    public IActionResult GetChatUsers(int userId)
    {
        var users = _context.Chats
            .Where(c => c.SenderId == userId || c.ReceiverId == userId)
            .GroupBy(c => new {
                UserId = c.SenderId == userId ? c.ReceiverId : c.SenderId
            })
            .Select(g => new
            {
                userid = g.Key.UserId,
                username = _context.Users
                    .Where(u => u.UserId == g.Key.UserId)
                    .Select(u => u.UserName)
                    .FirstOrDefault(),
                icon = _context.Users
                    .Where(u => u.UserId == g.Key.UserId)
                    .Select(u => u.Icon)
                    .FirstOrDefault(),
                lastmessage = g.OrderByDescending(c => c.SentAt)
        .Select(c => string.IsNullOrEmpty(c.Message) ? "No message" :
                     (c.Message.Length > 30 ? c.Message.Substring(0, 30) + "..." : c.Message))
        .FirstOrDefault(),
                status = _context.Users
                    .Where(u => u.UserId == g.Key.UserId)
                    .Select(u => u.Status)
                    .FirstOrDefault()
            })
            .ToList();

        return Json(users);
    }

    #endregion

    #region Chat
    public IActionResult GetChatMessages(int userId, int otherUserId, int page = 1, int pageSize = 5)
    {
        var messages = _context.Chats
            .Where(c => (c.SenderId == userId && c.ReceiverId == otherUserId) ||
                        (c.SenderId == otherUserId && c.ReceiverId == userId))
            .OrderByDescending(c => c.SentAt)
            .Skip((page - 1) * pageSize)
            .Take(pageSize)
            .ToList();

        var totalMessages = _context.Chats
            .Count(c => (c.SenderId == userId && c.ReceiverId == otherUserId) ||
                        (c.SenderId == otherUserId && c.ReceiverId == userId));

        bool hasMoreMessages = totalMessages > page * pageSize;

        return Json(new { messages, hasMoreMessages });
    }

    [HttpPost]
    public IActionResult SendMessage(int receiverId, string message, string? attachment)
    {
        var senderId = Convert.ToInt32(User.FindFirstValue(ClaimTypes.NameIdentifier));

        if (string.IsNullOrEmpty(message) && !string.IsNullOrEmpty(attachment))
        {
            message = "You received an attachment.";
        }

        var chat = new Chat
        {
            SenderId = senderId,
            ReceiverId = receiverId,
            Message = message,
        };

        if (!string.IsNullOrEmpty(attachment))
        {
            chat.Attachment = attachment;
        }
        _context.Chats.Add(chat);
        _context.SaveChanges();
        return Ok();
    }
    #endregion
}


connect_error) {
    die("Connection failed: " . $conn->connect_error);
}

// Get Users
function getUsers() {
    global $conn;
    $sql = "SELECT user_id, username, email, icon FROM users WHERE is_active = 1";
    $result = $conn->query($sql);
    $users = [];
    while($row = $result->fetch_assoc()) {
        $users[] = $row;
    }
    echo json_encode($users);
}

// Get Chat Users
function getChatUsers($userId) {
    global $conn;
    $sql = "SELECT DISTINCT
                CASE
                    WHEN sender_id = ? THEN receiver_id
                    ELSE sender_id
                END AS user_id,
                CASE
                    WHEN sender_id = ? THEN (SELECT username FROM users WHERE user_id = receiver_id)
                    ELSE (SELECT username FROM users WHERE user_id = sender_id)
                END AS username
            FROM chats
            WHERE sender_id = ? OR receiver_id = ?";
    $stmt = $conn->prepare($sql);
    $stmt->bind_param("iiii", $userId, $userId, $userId, $userId);
    $stmt->execute();
    $result = $stmt->get_result();
    $chatUsers = [];
    while ($row = $result->fetch_assoc()) {
        $chatUsers[] = $row;
    }
    echo json_encode($chatUsers);
}

// User Login
function login($username, $password) {
    global $conn;
    $sql = "SELECT * FROM users WHERE username = ?";
    $stmt = $conn->prepare($sql);
    $stmt->bind_param("s", $username);
    $stmt->execute();
    $result = $stmt->get_result();
    if ($result->num_rows > 0) {
        $user = $result->fetch_assoc();
        if ($user['password'] == $password) {
            echo json_encode(['success' => true, 'user' => $user]);
        } else {
            echo json_encode(['success' => false, 'message' => 'Invalid password']);
        }
    } else {
        echo json_encode(['success' => false, 'message' => 'User not found']);
    }
}

// Get Messages
function getMessages($userId, $otherUserId, $page = 1, $pageSize = 5) {
    global $conn;
    $offset = ($page - 1) * $pageSize;
    $sql = "SELECT * FROM chats WHERE (sender_id = ? AND receiver_id = ?) OR (sender_id = ? AND receiver_id = ?) ORDER BY sent_at DESC LIMIT ?, ?";
    $stmt = $conn->prepare($sql);
    $stmt->bind_param("iiiiii", $userId, $otherUserId, $otherUserId, $userId, $offset, $pageSize);
    $stmt->execute();
    $result = $stmt->get_result();
    $messages = [];
    while ($row = $result->fetch_assoc()) {
        $messages[] = $row;
    }
    echo json_encode($messages);
}

// Send Message
function sendMessage($senderId, $receiverId, $message, $attachment = null) {
    global $conn;
    $sql = "INSERT INTO chats (sender_id, receiver_id, message, attachment) VALUES (?, ?, ?, ?)";
    $stmt = $conn->prepare($sql);
    $stmt->bind_param("iiss", $senderId, $receiverId, $message, $attachment);
    if ($stmt->execute()) {
        echo json_encode(['success' => true]);
    } else {
        echo json_encode(['success' => false, 'message' => 'Message sending failed']);
    }
}

// Example Usage
// You would call these functions in your routing system or based on your HTTP requests
if ($_SERVER['REQUEST_METHOD'] === 'GET') {
    if (isset($_GET['action'])) {
        switch ($_GET['action']) {
            case 'getUsers':
                getUsers();
                break;
            case 'getChatUsers':
                $userId = $_GET['userId'];
                getChatUsers($userId);
                break;
            case 'getMessages':
                $userId = $_GET['userId'];
                $otherUserId = $_GET['otherUserId'];
                $page = isset($_GET['page']) ? $_GET['page'] : 1;
                $pageSize = isset($_GET['pageSize']) ? $_GET['pageSize'] : 5;
                getMessages($userId, $otherUserId, $page, $pageSize);
                break;
        }
    }
}

if ($_SERVER['REQUEST_METHOD'] === 'POST') {
    if (isset($_POST['action'])) {
        switch ($_POST['action']) {
            case 'login':
                $username = $_POST['username'];
                $password = $_POST['password'];
                login($username, $password);
                break;
            case 'sendMessage':
                $senderId = $_POST['senderId'];
                $receiverId = $_POST['receiverId'];
                $message = $_POST['message'];
                $attachment = isset($_POST['attachment']) ? $_POST['attachment'] : null;
                sendMessage($senderId, $receiverId, $message, $attachment);
                break;
        }
    }
}

$conn->close();
?>


const express = require('express');
const mysql = require('mysql2');
const bodyParser = require('body-parser');

// Set up Express
const app = express();
const port = 3000;

// Middleware to parse JSON requests
app.use(bodyParser.json());

// MySQL database connection
const db = mysql.createConnection({
    host: 'localhost',
    user: 'root',
    password: '',
    database: 'chatdb'
});

db.connect((err) => {
    if (err) {
        console.error('Database connection failed: ' + err.stack);
        return;
    }
    console.log('Connected to the database');
});

// Get all active users
app.get('/getUsers', (req, res) => {
    db.query('SELECT user_id, username, email, icon FROM users WHERE is_active = 1', (err, results) => {
        if (err) {
            return res.status(500).send({ error: 'Database error' });
        }
        res.json(results);
    });
});

// Get chat users for a specific user
app.get('/getChatUsers/:userId', (req, res) => {
    const userId = req.params.userId;
    const query = `
        SELECT DISTINCT
            CASE
                WHEN sender_id = ? THEN receiver_id
                ELSE sender_id
            END AS user_id,
            CASE
                WHEN sender_id = ? THEN (SELECT username FROM users WHERE user_id = receiver_id)
                ELSE (SELECT username FROM users WHERE user_id = sender_id)
            END AS username
        FROM chats
        WHERE sender_id = ? OR receiver_id = ?
    `;
    db.query(query, [userId, userId, userId, userId], (err, results) => {
        if (err) {
            return res.status(500).send({ error: 'Database error' });
        }
        res.json(results);
    });
});

// User login
app.post('/login', (req, res) => {
    const { username, password } = req.body;
    const query = 'SELECT * FROM users WHERE username = ?';
    db.query(query, [username], (err, results) => {
        if (err) {
            return res.status(500).send({ error: 'Database error' });
        }
        if (results.length > 0) {
            const user = results[0];
            if (user.password === password) {
                return res.json({ success: true, user });
            } else {
                return res.status(401).json({ success: false, message: 'Invalid password' });
            }
        } else {
            return res.status(404).json({ success: false, message: 'User not found' });
        }
    });
});

// Get messages between two users
app.get('/getMessages/:userId/:otherUserId', (req, res) => {
    const userId = req.params.userId;
    const otherUserId = req.params.otherUserId;
    const page = req.query.page || 1;
    const pageSize = req.query.pageSize || 5;
    const offset = (page - 1) * pageSize;

    const query = `
        SELECT * FROM chats
        WHERE (sender_id = ? AND receiver_id = ?)
        OR (sender_id = ? AND receiver_id = ?)
        ORDER BY sent_at DESC
        LIMIT ?, ?
    `;
    db.query(query, [userId, otherUserId, otherUserId, userId, offset, pageSize], (err, results) => {
        if (err) {
            return res.status(500).send({ error: 'Database error' });
        }
        res.json(results);
    });
});

// Send a message
app.post('/sendMessage', (req, res) => {
    const { senderId, receiverId, message, attachment } = req.body;
    const query = 'INSERT INTO chats (sender_id, receiver_id, message, attachment) VALUES (?, ?, ?, ?)';
    db.query(query, [senderId, receiverId, message, attachment], (err, results) => {
        if (err) {
            return res.status(500).send({ error: 'Message sending failed' });
        }
        res.json({ success: true });
    });
});

// Start the server
app.listen(port, () => {
    console.log(`Server running at http://localhost:${port}`);
});


import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;
import org.springframework.jdbc.core.JdbcTemplate;

import java.util.List;

                    SpringBootApplication
                    RestController
                    RequestMapping("/api")
public class ChatApplication {

                    Autowired
    private JdbcTemplate jdbcTemplate;

    public static void main(String[] args) {
        SpringApplication.run(ChatApplication.class, args);
    }

    // Get all active users
                    GetMapping("/getUsers")
    public List getUsers() {
        String sql = "SELECT user_id, username, email, icon FROM users WHERE is_active = 1";
        return jdbcTemplate.query(sql, (rs, rowNum) ->
                new User(rs.getInt("user_id"), rs.getString("username"), rs.getString("email"), rs.getString("icon")));
    }

    // Get chat users for a specific user
                        GetMapping("/getChatUsers/{userId}")
    public List getChatUsers(PathVariable int userId) {
        String sql = "SELECT DISTINCT " +
                     "CASE " +
                     "    WHEN sender_id = ? THEN receiver_id " +
                     "    ELSE sender_id " +
                     "END AS user_id, " +
                     "CASE " +
                     "    WHEN sender_id = ? THEN (SELECT username FROM users WHERE user_id = receiver_id) " +
                     "    ELSE (SELECT username FROM users WHERE user_id = sender_id) " +
                     "END AS username " +
                     "FROM chats WHERE sender_id = ? OR receiver_id = ?";
        return jdbcTemplate.query(sql, new Object[]{userId, userId, userId, userId}, (rs, rowNum) ->
                new User(rs.getInt("user_id"), rs.getString("username")));
    }

    // User login
                            PostMapping("/login")
    public Response login(RequestBody LoginRequest loginRequest) {
        String sql = "SELECT * FROM users WHERE username = ?";
        List users = jdbcTemplate.query(sql, new Object[]{loginRequest.getUsername()},
                (rs, rowNum) -> new User(rs.getInt("user_id"), rs.getString("username"), rs.getString("password")));

        if (users.isEmpty()) {
            return new Response(false, "User not found");
        }

        User user = users.get(0);
        if (user.getPassword().equals(loginRequest.getPassword())) {
            return new Response(true, user);
        } else {
            return new Response(false, "Invalid password");
        }
    }

    // Get messages between two users
                                GetMapping("/getMessages/{userId}/{otherUserId}")
    public List getMessages(PathVariable int userId, PathVariable int otherUserId,
                                    RequestParam(value = "page", defaultValue = "1") int page,
                                    RequestParam(value = "pageSize", defaultValue = "5") int pageSize) {
        String sql = "SELECT * FROM chats " +
                     "WHERE (sender_id = ? AND receiver_id = ?) " +
                     "OR (sender_id = ? AND receiver_id = ?) " +
                     "ORDER BY sent_at DESC LIMIT ?, ?";
        return jdbcTemplate.query(sql, new Object[]{userId, otherUserId, otherUserId, userId, (page - 1) * pageSize, pageSize},
                (rs, rowNum) -> new Message(rs.getInt("sender_id"), rs.getInt("receiver_id"), rs.getString("message"), rs.getTimestamp("sent_at")));
    }

    // Send a message
                                    PostMapping("/sendMessage")
    public Response sendMessage(RequestBody MessageRequest messageRequest) {
        String sql = "INSERT INTO chats (sender_id, receiver_id, message, attachment) VALUES (?, ?, ?, ?)";
        int result = jdbcTemplate.update(sql, messageRequest.getSenderId(), messageRequest.getReceiverId(), messageRequest.getMessage(), messageRequest.getAttachment());

        if (result > 0) {
            return new Response(true, "Message sent successfully");
        } else {
            return new Response(false, "Message sending failed");
        }
    }

    // DTOs and Response classes

    static class User {
        private int userId;
        private String username;
        private String email;
        private String icon;

        // Constructors, getters, and setters
    }

    static class Message {
        private int senderId;
        private int receiverId;
        private String message;
        private java.sql.Timestamp sentAt;

        // Constructors, getters, and setters
    }

    static class LoginRequest {
        private String username;
        private String password;

        // Constructors, getters, and setters
    }

    static class MessageRequest {
        private int senderId;
        private int receiverId;
        private String message;
        private String attachment;

        // Constructors, getters, and setters
    }

    static class Response {
        private boolean success;
        private String message;
        private Object data;

        public Response(boolean success, Object data) {
            this.success = success;
            this.data = data;
        }

        public Response(boolean success, String message) {
            this.success = success;
            this.message = message;
        }

        // Constructors, getters, and setters
    }
}


Release Notes

Future Plans

Future versions will continue to enhance the system with additional features such as:

• Advanced Notifications: Support for push and email notifications to keep users updated on new messages and activities.


• AI Chatbot Integration: Built-in AI support to turn the chat system into a chatbot for automatic responses and assistance.


• Draft Message Saving: Automatically saves draft messages, allowing users to return and send them later, even if they were away.


• Holiday Setup Message: Customizable messages for holiday or vacation periods, informing users of unavailable times or special notices.


• Message Scheduling: Ability to schedule messages to be sent at a later time or date, perfect for planning conversations in advance.


• Customizable User Status: Users can set their own status (e.g., "Available", "Away", "Do Not Disturb") for better visibility to others.


• Interactive Notifications: Advanced push and email notifications for more dynamic updates.


• AI-based Smart Replies: AI integration for automated responses during high traffic.
